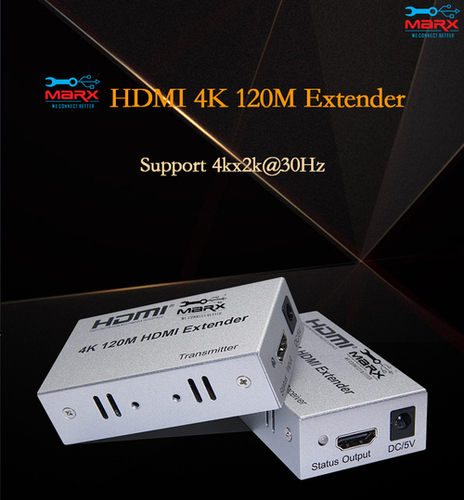

MARX HDMI Extender 120 Mtr

Name: MARX HDMI Extender 120 Mtr
Brand: JAYSHREE ELECTRONICS
Price: 7550.0 INR
Availability: InStock

Price 7550.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MARX HDMI Extender 120 Mtr Specification

Color
Black

Installation Guideline
Plug-and-play, No Driver Required; Connect via CAT6/CAT7 Cable

IP Rating
IP20

Supply Voltage
DC 5V

Temperature
-10°C to 50°C

Process
Signal Extension over Ethernet

Equipment Type
Sender and Receiver Pair

Finish
Powder Coated

Service Period
1 Year Warranty

Thickness
Approx 1.2mm Casing

Tolerance
Up to 120 meters over CAT6 cable

Application
CCTV, Multimedia, Education, Conference Room, Home Theater

Size
Standard Compact

Input Voltage
HDMI Standard Input

Material
Metal Casing

Processing
Digital Signal Processing (DSP)

Frequency
50/60 Hz

Design
Compact, Ventilated

Mounting Type
Tabletop or Wall Mount

Standard
HDMI 1.4, HDCP 1.4 Compliant

Dimension (L*W*H)
142mm x 56mm x 23mm (per unit)

Weight
Approx 250g (each unit)

Usage
Long Distance HDMI Signal Transmission

Output Voltage
HDMI Standard Output

Product Type
HDMI Extender

Technique
HDMI over CAT6/CAT7 Transmission

Surface Treatment
Anti-corrosive Coating

Humidity
10% - 90% RH, Non-condensing

Audio Support
DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD

LED Indicators
Power and Signal Status

Power Consumption
<5W (each unit)

Bandwidth
10.2Gbps

Cable Recommendation
High Quality CAT6 or CAT7 STP/UTP

Maximum Transmission Distance
120 Meters over CAT6/CAT7 Cable

Connector Type
HDMI Type-A, RJ45

ESD Protection
±8kV (Air-gap Discharge), ±4kV (Contact Discharge)

Video Resolution Support
Up to 1080p Full HD

Operating Mode
Point-to-Point

Compatibility
Backward Compatible with HDMI 1.3/1.2

MARX HDMI Extender 120 Mtr Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About MARX HDMI Extender 120 Mtr

Hdmi Extender Extend Signal By Cat 5e / 6 Using Single Piece Cat 5e/ 6 Cable To Extend Hdtv Display Up To 200m For 1080p.It Not Only Breaks The Limitation Of The Hdmi Cable Transmission Length But Also Cat 6 Has More Flexibility And Convenience In Cable Construction.

Extended HDMI Connectivity Over Long Distances

MARX HDMI Extender enables seamless HDMI transmission up to 120 meters using CAT6 or CAT7 cables, ensuring high-quality video and audio delivery in large spaces. Its digital signal processing technology guarantees reliable performance for commercial and residential applications. The device supports Full HD 1080p resolution and advanced audio, making it ideal for professional installations.

Simplified Installation and Reliable Signal Processing

Installation is fast and straightforward-simply plug in the sender and receiver and connect them via a single CAT6/CAT7 cable. No software drivers are needed. Real-time LED indicators display power and signal status, simplifying troubleshooting and monitoring during use. Its compact, ventilated metal design is both durable and easy to mount on tables or walls.

FAQ's of MARX HDMI Extender 120 Mtr:

Q: How do I install the MARX HDMI Extender 120 Mtr?

A: Installation is straightforward. Connect the sender and receiver units using a high-quality CAT6/CAT7 cable, attach your HDMI source and display to the respective HDMI ports, and power both units with the provided DC 5V adapter. The system is plug-and-play and requires no drivers.

Q: What environments are suitable for using the MARX HDMI Extender?

A: This HDMI extender is ideal for applications such as CCTV monitoring, multimedia presentations, educational institutions, conference rooms, and home theaters-anywhere requiring long-distance HDMI signal transmission up to 120 meters.

Q: When should I choose a CAT6 versus CAT7 cable for this extender?

A: Both CAT6 and CAT7 cables are compatible, but using a high-quality CAT7 cable can provide improved shielding and signal integrity over longer distances, especially in environments with potential electrical interference.

Q: Where can I mount the MARX HDMI Extender units?

A: The compact metal casing allows for versatile installation. You can mount the sender and receiver units on tables or walls, using standard mounting options, to best fit your setup needs.

Q: What are the benefits of using this HDMI extender over standard HDMI cables?

A: The MARX HDMI Extender overcomes the typical distance limitations of HDMI cables by utilizing CAT6/CAT7 Ethernet cables, allowing reliable signal transmission up to 120 meters while maintaining Full HD video and advanced audio quality.

Q: How does the device manage power consumption and signal protection?

A: Each unit consumes less than 5W, enhancing energy efficiency. Additionally, the extender features ESD protection up to 8kV (air-gap) and 4kV (contact discharge) to safeguard against electrical surges and static electricity.

Q: What process does the MARX HDMI Extender use for signal transmission?

A: The extender utilizes digital signal processing (DSP), transmitting HDMI signals over Ethernet using CAT6/CAT7 cables, ensuring minimal signal loss and high fidelity over extended distances.
